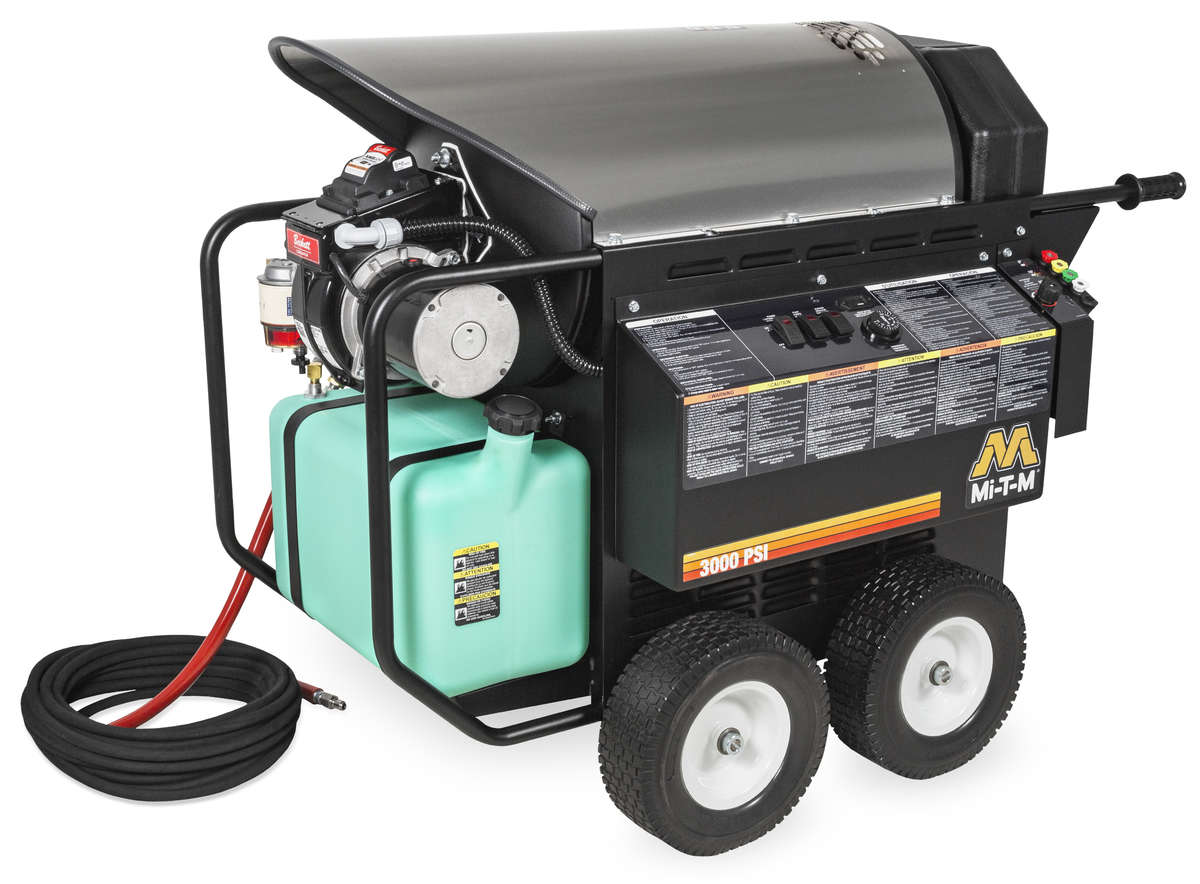

MiTM 4gpm 3000psi Portable Electric Hot Water Pressure Washer
HHS-3004-2E2G 4gpm 3000psi 40amp Single Phase
This HHS Series is a popular choice amongst contractors because it is suitable for even the most rugged applications in oil, trucking and manufacturing industries.
PUMP
● Belt drive triplex piston pump with ceramic plungers● Factory preset unloader
MOTOR
● Open drip-proof electric motor ● 35-foot power cord
FRAME
● Powder coated steel frame assembly● 13-inch flat-free tires
COMPONENTS
● Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil● No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)● Racor fuel filter/water separator● Polyethylene float tank with inlet filter screen
● Adjustable high pressure detergent injector● Adjustable thermostat● 10-gallon polyethylene fuel tank● Auto start/stop● Time delay shutdown● Hour meter
MISCELLANEOUS
● Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
UNIT INCLUDES
● Quick connect nozzles – 0°, 15°, 25°, 40° and low pressure nozzle● 50-foot x 3⁄8-inch high pressure hose with quick connects● Adjustable pressure insulated dual lance with trigger gun
LIMITED WARRANTY
● 1 year electric motor
CERTIFICATION
● ETL Certified – US and Canada
| Grade |
Industrial |
|---|---|
| Water Temperature |
Hot Water |
| Drive Type |
Belt Drive |
| PSI |
3000 |
| GPM |
3.9 |
| Horsepower/Motor |
8.0 HP, 230V, 1Ø, 39.9A |
| Pump |
General |
| Plug Type |
NEMA 6-50P |
| Burner Fuel Tank Capacity |
10.0 gallons |
| Fuel Consumption |
2.45 gph |
| BTU Per Hour |
343,000 |
Weight & Dimensions
| Width | 30 |
|---|---|
| Height | 41.5 |
| Length | 57 |
| Shipping Weight | 700 |
| Net Weight | 580 |
This product does NOT ship, please contact Rockhold Ranch Equipment to arrange pickup or local delivery.
