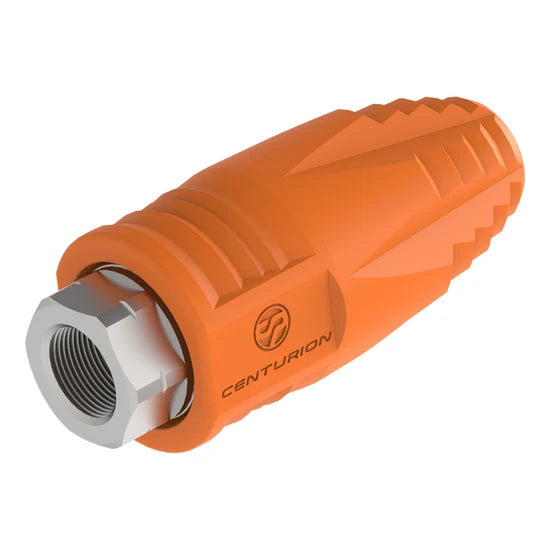

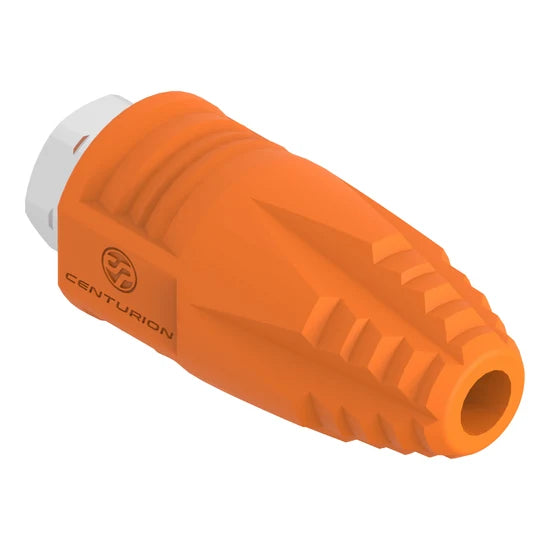

Centurion HX 8.0 Hydro Excavation Nozzle – 3,600 PSI, 1/2" FNPT

Cut through compacted soil, clay, and frozen ground with the Centurion HX 8.0 rotating hydro excavation nozzle. Designed for professional hydrovac digging, it combines controlled rotation with a concentrated water jet and serviceable components for demanding field work.

At a glance: 8.0 orifice • 8 GPM supplier-rated flow • 3,600 PSI maximum • 212°F maximum water temperature • 1/2" FNPT inlet.

Built for productive hydrovac digging

• Controlled rotation: A governed rotor helps maintain a consistent, concentrated water stream for soil cutting.
• Flow-straightening design: Internal flow straightening reduces turbulence as water enters the nozzle.
• Durable construction: A stainless steel housing and tungsten carbide rotor provide corrosion and wear resistance.
• Hot-water capability: Rated for water temperatures up to 212°F for compatible hot-water excavation systems.
• Repairable design: Replaceable internal components let you service the nozzle instead of replacing the entire unit.
• Made in Italy: Built for professional hydro excavation applications.

Centurion HX 8.0 specifications

Check compatibility before ordering

Confirm that your digging lance has a compatible 1/2" male pipe-thread connection and that your system is correctly matched to the 8.0 orifice. Actual flow depends on operating pressure and system setup. Keep operation within the nozzle and equipment ratings.

Need help choosing the right nozzle? Contact Rockhold Ranch Equipment with your system pressure, flow rate, and lance connection before ordering. If these specifications match your setup, add the Centurion HX 8.0 to your cart.
