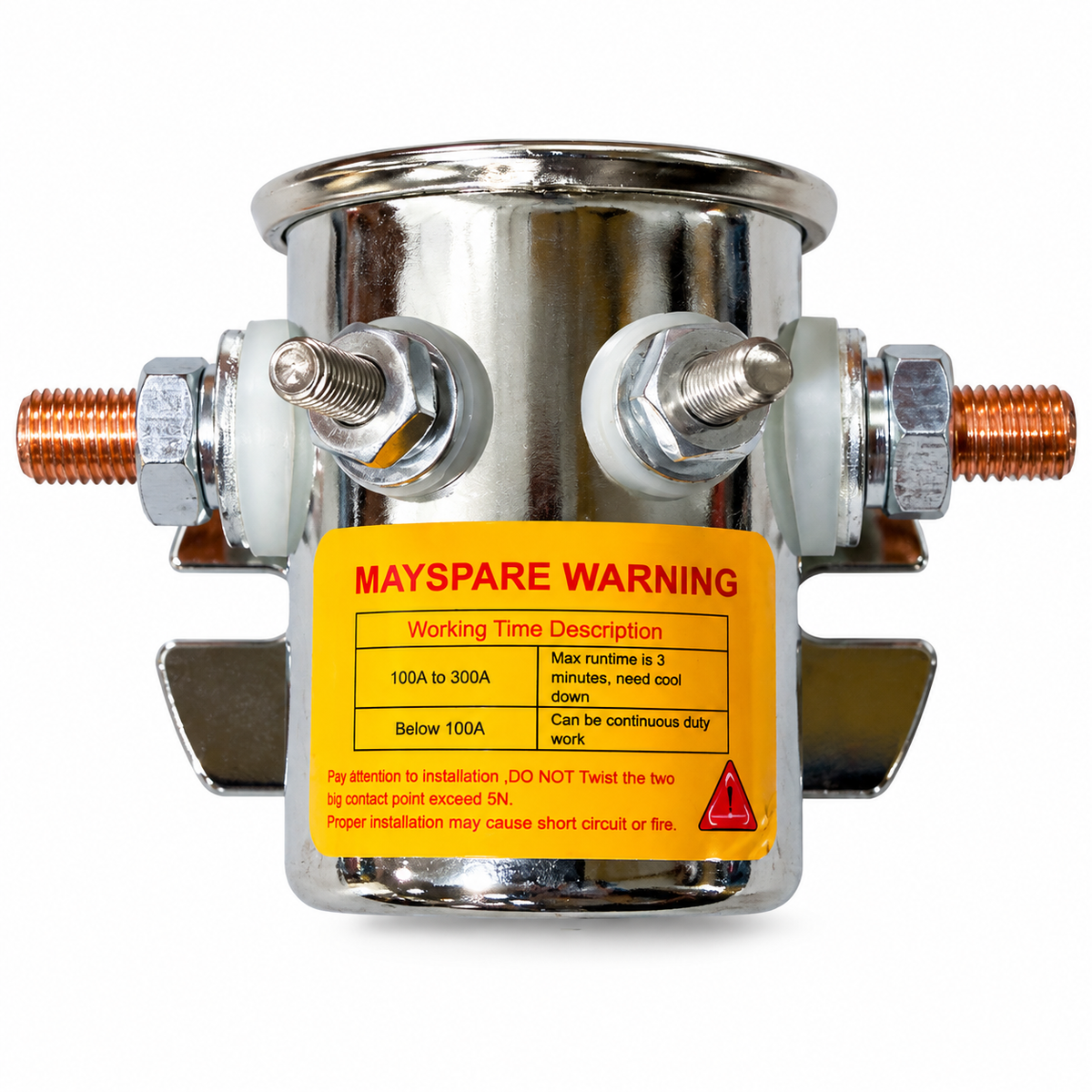

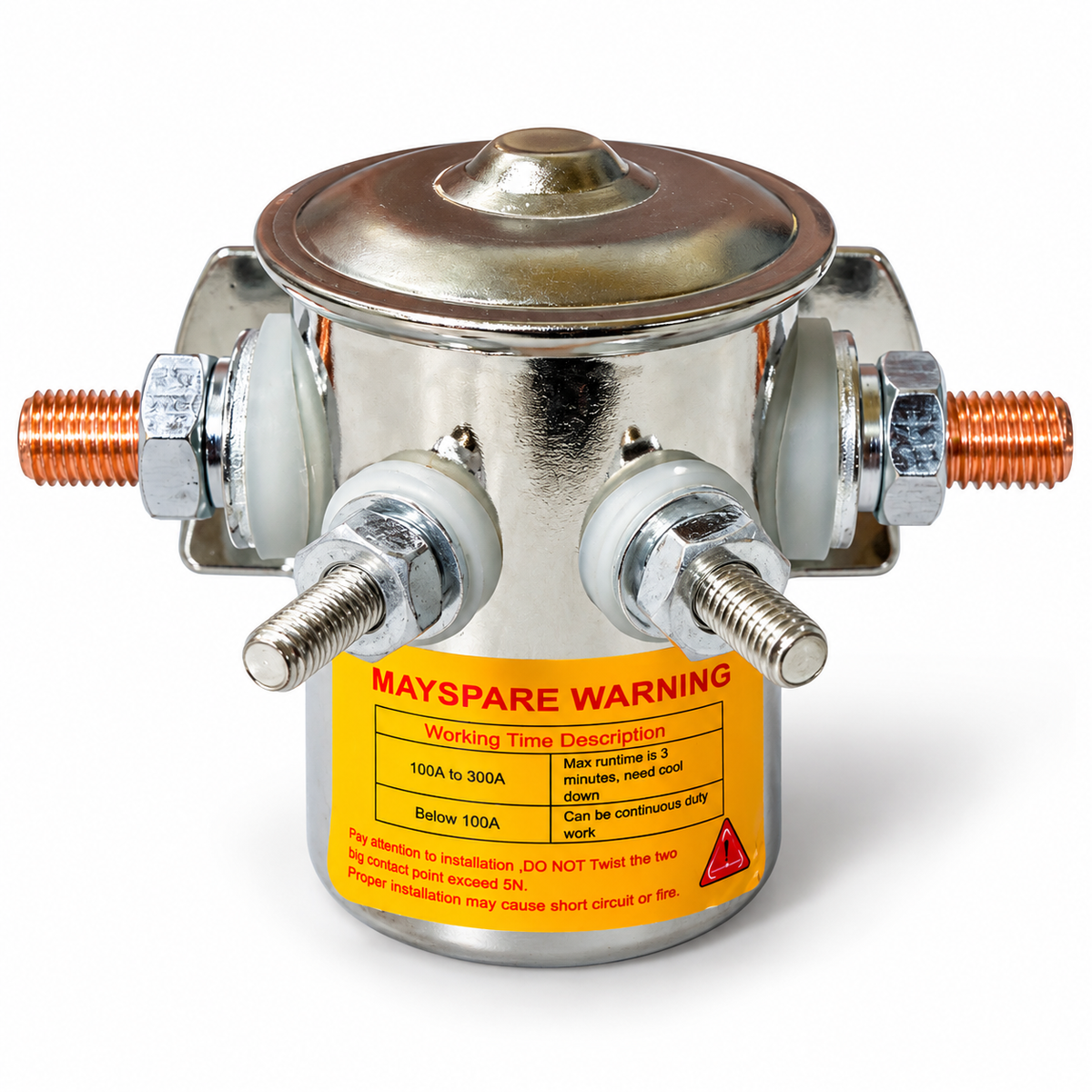

12V Continuous Duty Solenoid Relay – 4 Post, 300A Peak

Keep your equipment working with a 12V continuous duty solenoid relay built for sustained electrical loads below 100 amps and peak loads up to 300 amps.

This four-post solenoid uses a low-current control circuit to switch power to a higher-current load. It’s a replacement option for compatible hot water pressure washer burner circuits, electric motors, and other 12V equipment requiring continuous duty operation.

Why choose this solenoid?

• Continuous duty operation: For applications drawing less than 100A continuously.

• 300A peak capacity: Handles brief current surges when equipment starts.

• Four-terminal design: Two large power studs and two small control terminals.

• SPST switching: Simple on/off control of a single power circuit.

• Nickel-plated finish: Helps resist surface corrosion.

• Straight mounting bracket: Mounting holes spaced 2-13/64 inches on center.

Specifications

• Operating voltage: 12V DC

• Continuous load: Below 100A

• Peak current: 300A

• Configuration: Four posts / four terminals

• Switch type: Single-pole, single-throw (SPST)

• Quantity: One solenoid relay

Choose the right replacement the first time. Match the voltage, terminal functions, mounting dimensions, and electrical load to your existing application.

Need help matching a pressure washer burner relay or replacement solenoid? Contact Rockhold Ranch Equipment for parts support backed by hands-on service experience.
